Chapter 12 Classification

Classification might be the most well-known application of Bayesian methods, made famous in the 1990s as the basis of the first generation of spam filters.

🔗

In this chapter, I’ll demonstrate Bayesian classification using data collected and made available by Dr. Kristen Gorman at the Palmer Long-Term Ecological Research Station in Antarctica (see Gorman, Williams, and Fraser, "Ecological Sexual Dimorphism and Environmental Variability within a Community of Antarctic Penguins (Genus Pygoscelis)", March 2014). We’ll use this data to classify penguins by species.

🔗

Section 12.1 Penguin Data

I’ll use Pandas to load the data into a DataFrame.

🔗

import pandas as pd

df = pd.read_csv('penguins_raw.csv').dropna(subset=['Body Mass (g)'])
df.shape

(342, 17)

The dataset contains one row for each penguin and one column for each variable.

🔗

df.head()

studyName  Sample Number                              Species  Region  \
0   PAL0708              1  Adelie Penguin (Pygoscelis adeliae)  Anvers
1   PAL0708              2  Adelie Penguin (Pygoscelis adeliae)  Anvers
2   PAL0708              3  Adelie Penguin (Pygoscelis adeliae)  Anvers
4   PAL0708              5  Adelie Penguin (Pygoscelis adeliae)  Anvers
5   PAL0708              6  Adelie Penguin (Pygoscelis adeliae)  Anvers

      Island               Stage Individual ID Clutch Completion    Date Egg  \
0  Torgersen  Adult, 1 Egg Stage          N1A1               Yes  2007-11-11
1  Torgersen  Adult, 1 Egg Stage          N1A2               Yes  2007-11-11
2  Torgersen  Adult, 1 Egg Stage          N2A1               Yes  2007-11-16
4  Torgersen  Adult, 1 Egg Stage          N3A1               Yes  2007-11-16
5  Torgersen  Adult, 1 Egg Stage          N3A2               Yes  2007-11-16

   Culmen Length (mm)  Culmen Depth (mm)  Flipper Length (mm)  Body Mass (g)  \
0                39.1               18.7                181.0         3750.0
1                39.5               17.4                186.0         3800.0
2                40.3               18.0                195.0         3250.0
4                36.7               19.3                193.0         3450.0
5                39.3               20.6                190.0         3650.0

      Sex  Delta 15 N (o/oo)  Delta 13 C (o/oo)  \
0    MALE                NaN                NaN
1  FEMALE            8.94956          -24.69454
2  FEMALE            8.36821          -25.33302
4  FEMALE            8.76651          -25.32426
5    MALE            8.66496          -25.29805

                         Comments
0  Not enough blood for isotopes.
1                             NaN
2                             NaN
4                             NaN
5                             NaN

Three species of penguins are represented in the dataset: Adélie, Chinstrap and Gentoo.

🔗

The measurements we’ll use are:

🔗

Body Mass in grams (g).
🔗

🔗
Flipper Length in millimeters (mm).
🔗

🔗
Culmen Length in millimeters.
🔗

🔗
Culmen Depth in millimeters.
🔗

🔗

If you are not familiar with the word "culmen", it refers to the top margin of the beak.

🔗

These measurements will be most useful for classification if there are substantial differences between species and small variation within species. To see whether that is true, and to what degree, I’ll plot cumulative distribution functions (CDFs) of each measurement for each species.

🔗

The following function takes the DataFrame and a column name.

🔗

It returns a dictionary that maps from each species name to a Cdf of the values in the column named colname.

🔗

def make_cdf_map(df, colname, by='Species2'):
    """Make a CDF for each species."""
    cdf_map = {}
    grouped = df.groupby(by)[colname]
    for species, group in grouped:
        cdf_map[species] = Cdf.from_seq(group, name=species)
    return cdf_map

The following function plots a Cdf of the values in the given column for each species:

🔗

from empiricaldist import Cdf
from utils import decorate

def plot_cdfs(df, colname, by='Species2'):
    """Make a CDF for each species.

    df: DataFrame
    colname: string column name
    by: string column name

    returns: dictionary from species name to Cdf
    """
    cdf_map = make_cdf_map(df, colname, by)

    for species, cdf in cdf_map.items():
        cdf.plot(label=species, marker='')

    decorate(xlabel=colname,
             ylabel='CDF')

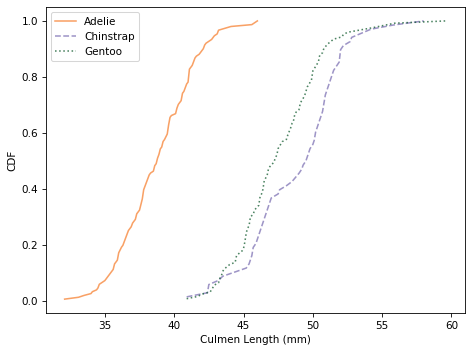

Here’s what the distributions look like for culmen length.

🔗

colname = 'Culmen Length (mm)'
plot_cdfs(df, colname)

It looks like we can use culmen length to identify Adélie penguins, but the distributions for the other two species almost entirely overlap.

🔗

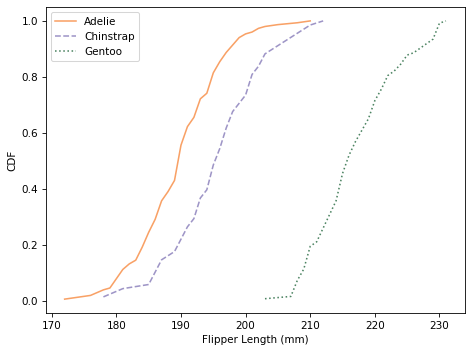

Here are the distributions for flipper length.

🔗

colname = 'Flipper Length (mm)'
plot_cdfs(df, colname)

Using flipper length, we can distinguish Gentoo penguins from the other two species. So with just these two features, it seems like we should be able to classify penguins with some accuracy.

🔗

All of these CDFs show the sigmoid shape characteristic of the normal distribution; I will take advantage of that observation in the next section.

🔗

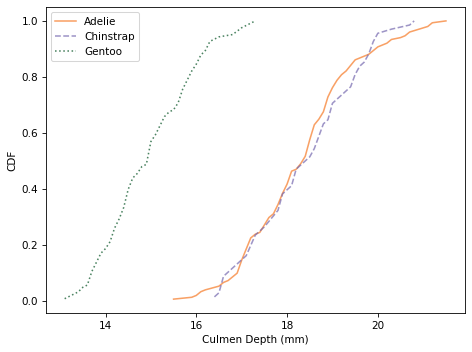

Here are the distributions for culmen depth.

🔗

colname = 'Culmen Depth (mm)'
plot_cdfs(df, colname)

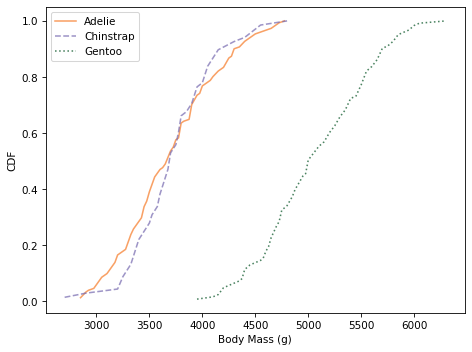

And here are the distributions of body mass.

🔗

colname = 'Body Mass (g)'
plot_cdfs(df, colname)

Culmen depth and body mass distinguish Gentoo penguins from the other two species, but these features might not add a lot of additional information, beyond what we get from flipper length and culmen length.

🔗

Section 12.2 Normal Models

Let’s use these features to classify penguins. We’ll proceed in the usual Bayesian way:

🔗

1. Define a prior distribution with the three possible species and a prior probability for each,

🔗

2. Compute the likelihood of the data for each hypothetical species, and then

🔗

3. Compute the posterior probability of each hypothesis.

🔗

To compute the likelihood of the data under each hypothesis, I’ll use the data to estimate the parameters of a normal distribution for each species.

🔗

The following function takes a DataFrame and a column name; it returns a dictionary that maps from each species name to a norm object.

🔗

norm is defined in SciPy; it represents a normal distribution with a given mean and standard deviation.

🔗

from scipy.stats import norm

def make_norm_map(df, colname, by='Species2'):
    """Make a map from species to norm object."""
    norm_map = {}
    grouped = df.groupby(by)[colname]
    for species, group in grouped:
        mean = group.mean()
        std = group.std()
        norm_map[species] = norm(mean, std)
    return norm_map

For example, here’s the dictionary of norm objects for flipper length:

🔗

flipper_map = make_norm_map(df, 'Flipper Length (mm)')
flipper_map.keys()

dict_keys(['Adelie', 'Chinstrap', 'Gentoo'])

Now suppose we measure a penguin and find that its flipper is 193 mm. What is the probability of that measurement under each hypothesis?

🔗

The norm object provides pdf, which computes the probability density function (PDF) of the normal distribution. We can use it to compute the likelihood of the observed data in a given distribution.

🔗

data = 193
flipper_map['Adelie'].pdf(data)

0.054732511875530694

The result is a probability density, so we can’t interpret it as a probability. But it is proportional to the likelihood of the data, so we can use it to update the prior.

🔗

Here’s how we compute the likelihood of the data in each distribution.

🔗

hypos = flipper_map.keys()
likelihood = [flipper_map[hypo].pdf(data) for hypo in hypos]
likelihood

[0.054732511875530694, 0.05172135615888162, 5.8660453661990634e-05]

Now we’re ready to do the update.

🔗

Section 12.3 The Update

As usual I’ll use a Pmf to represent the prior distribution. For simplicity, let’s assume that the three species are equally likely.

🔗

from empiricaldist import Pmf

prior = Pmf(1/3, hypos)
prior

Adelie       0.333333
Chinstrap    0.333333
Gentoo       0.333333
dtype: float64

Now we can do the update in the usual way.

🔗

posterior = prior * likelihood
posterior.normalize()
posterior

Adelie       0.513860
Chinstrap    0.485589
Gentoo       0.000551
dtype: float64

A penguin with a 193 mm flipper is unlikely to be a Gentoo, but might be either an Adélie or Chinstrap (assuming that the three species were equally likely before the measurement).

🔗

The following function encapsulates the steps we just ran.

🔗

It takes a Pmf representing the prior distribution, the observed data, and a map from each hypothesis to the distribution of the feature.

🔗

def update_penguin(prior, data, norm_map):
    """Update hypothetical species."""
    hypos = prior.qs
    likelihood = [norm_map[hypo].pdf(data) for hypo in hypos]
    posterior = prior * likelihood
    posterior.normalize()
    return posterior

The return value is the posterior distribution.

🔗

Here’s the previous example again, using update_penguin:

🔗

posterior1 = update_penguin(prior, 193, flipper_map)
posterior1

Adelie       0.513860
Chinstrap    0.485589
Gentoo       0.000551
dtype: float64

As we saw in the CDFs, flipper length does not distinguish strongly between Adélie and Chinstrap penguins.

🔗

But culmen length can make this distinction, so let’s use it to do a second round of classification. First we estimate distributions of culmen length for each species like this:

🔗

culmen_map = make_norm_map(df, 'Culmen Length (mm)')

Now suppose we see a penguin with culmen length 48 mm. We can use this data to update the prior.

🔗

posterior2 = update_penguin(prior, 48, culmen_map)
posterior2

Adelie       0.001557
Chinstrap    0.474658
Gentoo       0.523785
dtype: float64

A penguin with culmen length 48 mm is about equally likely to be a Chinstrap or Gentoo.

🔗

Using one feature at a time, we can often rule out one species or another, but we generally can’t identify species with confidence. We can do better using multiple features.

🔗

Section 12.4 Naive Bayesian Classification

To make it easier to do multiple updates, I’ll use the following function, which takes a prior Pmf, a sequence of measurements and a corresponding sequence of dictionaries containing estimated distributions.

🔗

def update_naive(prior, data_seq, norm_maps):
    """Naive Bayesian classifier

    prior: Pmf
    data_seq: sequence of measurements
    norm_maps: sequence of maps from species to distribution

    returns: Pmf representing the posterior distribution
    """
    posterior = prior.copy()
    for data, norm_map in zip(data_seq, norm_maps):
        posterior = update_penguin(posterior, data, norm_map)
    return posterior

It performs a series of updates, using one variable at a time, and returns the posterior Pmf.

🔗

To test it, I’ll use the same features we looked at in the previous section: culmen length and flipper length.

🔗

colnames = ['Flipper Length (mm)', 'Culmen Length (mm)']
norm_maps = [flipper_map, culmen_map]

Now suppose we find a penguin with flipper length 193 mm and culmen length 48.

🔗

Here’s the update:

🔗

data_seq = 193, 48
posterior = update_naive(prior, data_seq, norm_maps)
posterior

Adelie       0.003455
Chinstrap    0.995299
Gentoo       0.001246
dtype: float64

It is almost certain to be a Chinstrap.

🔗

posterior.max_prob()

'Chinstrap'

We can loop through the dataset and classify each penguin with these two features.

🔗

import numpy as np

df['Classification'] = "None"

for i, row in df.iterrows():
    data_seq = row[colnames]
    posterior = update_naive(prior, data_seq, norm_maps)
    df.loc[i, 'Classification'] = posterior.max_prob()

This loop adds a column called Classification to the DataFrame; it contains the species with the maximum posterior probability for each penguin.

🔗

So let’s see how many we got right.

🔗

len(df)

valid = df['Classification'].notna()
valid.sum()

same = df['Species2'] == df['Classification']
same.sum()

There are 344 penguins in the dataset, but two of them are missing measurements, so we have 342 valid cases. Of those, 324 are classified correctly, which is almost 95%.

🔗

same.sum() / valid.sum()

0.9473684210526315

The following function encapsulates these steps.

🔗

def accuracy(df):
    """Compute the accuracy of classification."""
    valid = df['Classification'].notna()
    same = df['Species2'] == df['Classification']
    return same.sum() / valid.sum()

The classifier we used in this section is called "naive" because it ignores correlations between the features. To see why that matters, I’ll make a less naive classifier: one that takes into account the joint distribution of the features.

🔗

Section 12.5 Joint Distributions

I’ll start by making a scatter plot of the data.

🔗

import matplotlib.pyplot as plt

def scatterplot(df, var1, var2):
    """Make a scatter plot."""
    grouped = df.groupby('Species2')
    for species, group in grouped:
        plt.plot(group[var1], group[var2],
                 label=species, ls="None", alpha=0.3)

    decorate(xlabel=var1, ylabel=var2)

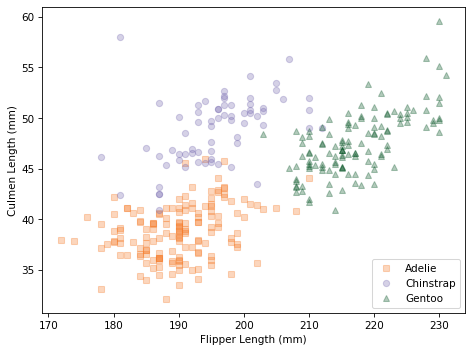

Here’s a scatter plot of culmen length and flipper length for the three species.

🔗

var1 = 'Flipper Length (mm)'
var2 = 'Culmen Length (mm)'
scatterplot(df, var1, var2)

Within each species, the joint distribution of these measurements forms an oval shape, at least roughly. The orientation of the ovals is along a diagonal, which indicates that there is a correlation between culmen length and flipper length.

🔗

If we ignore these correlations, we are assuming that the features are independent. To see what that looks like, I’ll make a joint distribution for each species assuming independence.

🔗

The following function makes a discrete Pmf that approximates a normal distribution.

🔗

def make_pmf_norm(dist, sigmas=3, n=101):
    """Make a Pmf approximation to a normal distribution."""
    mean, std = dist.mean(), dist.std()
    low = mean - sigmas * std
    high = mean + sigmas * std
    qs = np.linspace(low, high, n)
    ps = dist.pdf(qs)
    pmf = Pmf(ps, qs)
    pmf.normalize()
    return pmf

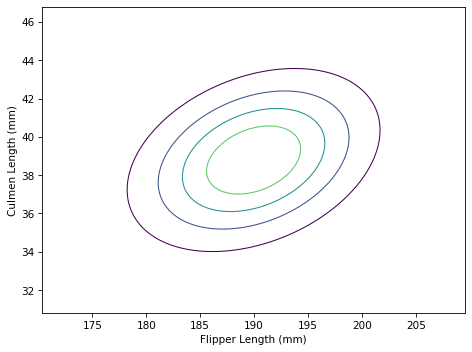

We can use it, along with make_joint, to make a joint distribution of culmen length and flipper length for each species.

🔗

from utils import make_joint

joint_map = {}
for species in hypos:
    pmf1 = make_pmf_norm(flipper_map[species])
    pmf2 = make_pmf_norm(culmen_map[species])
    joint_map[species] = make_joint(pmf1, pmf2)

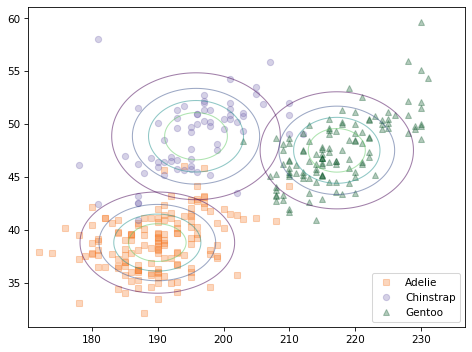

The following figure compares a scatter plot of the data to the contours of the joint distributions, assuming independence.

🔗

from utils import plot_contour

scatterplot(df, var1, var2)
for species in hypos:
    plot_contour(joint_map[species], alpha=0.5)

The contours of a joint normal distribution form ellipses. In this example, because the features are uncorrelated, the ellipses are aligned with the axes. But they are not well aligned with the data.

🔗

We can make a better model of the data, and use it to compute better likelihoods, with a multivariate normal distribution.

🔗

Section 12.6 Multivariate Normal Distribution

As we have seen, a univariate normal distribution is characterized by its mean and standard deviation.

🔗

A multivariate normal distribution is characterized by the means of the features and the covariance matrix, which contains variances, which quantify the spread of the features, and the covariances, which quantify the relationships among them.

🔗

We can use the data to estimate the means and covariance matrix for the population of penguins. First I’ll select the columns we want.

🔗

features = df[[var1, var2]]

And compute the means.

🔗

mean = features.mean()
mean

Flipper Length (mm)    200.915205
Culmen Length (mm)      43.921930
dtype: float64

We can also compute the covariance matrix:

🔗

cov = features.cov()
cov

                     Flipper Length (mm)  Culmen Length (mm)
Flipper Length (mm)           197.731792           50.375765
Culmen Length (mm)             50.375765           29.807054

The result is a DataFrame with one row and one column for each feature. The elements on the diagonal are the variances; the elements off the diagonal are covariances.

🔗

By themselves, variances and covariances are hard to interpret. We can use them to compute standard deviations and correlation coefficients, which are easier to interpret, but the details of that calculation are not important right now.

🔗

Instead, we’ll pass the covariance matrix to multivariate_normal, which is a SciPy function that creates an object that represents a multivariate normal distribution.

🔗

As arguments it takes a sequence of means and a covariance matrix:

🔗

from scipy.stats import multivariate_normal

multinorm = multivariate_normal(mean, cov)

The following function makes a multivariate_normal object for each species.

🔗

def make_multinorm_map(df, colnames):
    """Make a map from each species to a multivariate normal."""
    multinorm_map = {}
    grouped = df.groupby('Species2')
    for species, group in grouped:
        features = group[colnames]
        mean = features.mean()
        cov = features.cov()
        multinorm_map[species] = multivariate_normal(mean, cov)
    return multinorm_map

Here’s how we make this map for the first two features, flipper length and culmen length.

🔗

multinorm_map = make_multinorm_map(df, [var1, var2])

🔗

Section 12.7 Visualizing a Multivariate Normal Distribution

This section uses some NumPy magic to generate contour plots for multivariate normal distributions. If that’s interesting for you, great! Otherwise, feel free to skip to the results. In the next section we’ll do the actual classification, which turns out to be easier than the visualization.

🔗

I’ll start by making a contour map for the distribution of features among Adélie penguins.

🔗

Here are the univariate distributions for the two features we’ll use and the multivariate distribution we just computed.

🔗

norm1 = flipper_map['Adelie']
norm2 = culmen_map['Adelie']
multinorm = multinorm_map['Adelie']

I’ll make a discrete Pmf approximation for each of the univariate distributions.

🔗

pmf1 = make_pmf_norm(norm1)
pmf2 = make_pmf_norm(norm2)

And use them to make a mesh grid that contains all pairs of values.

🔗

X, Y = np.meshgrid(pmf1.qs, pmf2.qs)
X.shape

(101, 101)

The mesh is represented by two arrays: the first contains the quantities from pmf1 along the x axis; the second contains the quantities from pmf2 along the y axis.

🔗

In order to evaluate the multivariate distribution for each pair of values, we have to "stack" the arrays.

🔗

pos = np.dstack((X, Y))
pos.shape

(101, 101, 2)

The result is a 3-D array that you can think of as a 2-D array of pairs. When we pass this array to multinorm.pdf, it evaluates the probability density function of the distribution for each pair of values.

🔗

densities = multinorm.pdf(pos)
densities.shape

(101, 101)

The result is an array of probability densities. If we put them in a DataFrame and normalize them, the result is a discrete approximation of the joint distribution of the two features.

🔗

from utils import normalize

joint = pd.DataFrame(densities, columns=pmf1.qs, index=pmf2.qs)
normalize(joint)

15.87134363991382

Here’s what the result looks like.

🔗

plot_contour(joint)
decorate(xlabel=var1,
         ylabel=var2)

The contours of a multivariate normal distribution are still ellipses, but now that we have taken into account the correlation between the features, the ellipses are no longer aligned with the axes.

🔗

The following function encapsulate the steps we just did.

🔗

def make_joint(norm1, norm2, multinorm):
    """Make a joint distribution.

    norm1: `norm` object representing the distribution of the first feature
    norm2: `norm` object representing the distribution of the second feature
    multinorm: `multivariate_normal` object representing the joint distribution
    """
    pmf1 = make_pmf_norm(norm1)
    pmf2 = make_pmf_norm(norm2)
    X, Y = np.meshgrid(pmf1.qs, pmf2.qs)
    pos = np.dstack((X, Y))
    densities = multinorm.pdf(pos)
    joint = pd.DataFrame(densities, columns=pmf1.qs, index=pmf2.qs)
    return joint

The following figure shows a scatter plot of the data along with the contours of the multivariate normal distribution for each species.

🔗

scatterplot(df, var1, var2)

for species in hypos:
    norm1 = flipper_map[species]
    norm2 = culmen_map[species]
    multinorm = multinorm_map[species]
    joint = make_joint(norm1, norm2, multinorm)
    plot_contour(joint, alpha=0.5)

Because the multivariate normal distribution takes into account the correlations between features, it is a better model for the data. And there is less overlap in the contours of the three distributions, which suggests that they should yield better classifications.

🔗

Section 12.8 A Less Naive Classifier

In a previous section we used update_penguin to update a prior Pmf based on observed data and a collection of norm objects that model the distribution of observations under each hypothesis. Here it is again:

🔗

def update_penguin(prior, data, norm_map):
    """Update hypothetical species."""
    hypos = prior.qs
    likelihood = [norm_map[hypo].pdf(data) for hypo in hypos]
    posterior = prior * likelihood
    posterior.normalize()
    return posterior

Last time we used this function, the values in norm_map were norm objects, but it also works if they are multivariate_normal objects.

🔗

We can use it to classify a penguin with flipper length 193 and culmen length 48:

🔗

data = 193, 48
update_penguin(prior, data, multinorm_map)

Adelie       0.002740
Chinstrap    0.997257
Gentoo       0.000003
dtype: float64

A penguin with those measurements is almost certainly a Chinstrap.

🔗

Now let’s see if this classifier does any better than the naive Bayesian classifier. I’ll apply it to each penguin in the dataset:

🔗

df['Classification'] = "None"

for i, row in df.iterrows():
    data = row[colnames]
    posterior = update_penguin(prior, data, multinorm_map)
    df.loc[i, 'Classification'] = posterior.idxmax()

And compute the accuracy:

🔗

accuracy(df)

0.9532163742690059

It turns out to be only a little better: the accuracy is 95.3%, compared to 94.7% for the naive Bayesian classifier.

🔗

Section 12.9 Summary

In this chapter, we implemented a naive Bayesian classifier, which is "naive" in the sense that it assumes that the features it uses for classification are independent.

🔗

To see how bad that assumption is, we also implemented a classifier that uses a multivariate normal distribution to model the joint distribution of the features, which includes their dependencies.

🔗

In this example, the non-naive classifier is only marginally better.

🔗

In one way, that’s disappointing. After all that work, it would have been nice to see a bigger improvement.

🔗

But in another way, it’s good news. In general, a naive Bayesian classifier is easier to implement and requires less computation. If it works nearly as well as a more complex algorithm, it might be a good choice for practical purposes.

🔗

Speaking of practical purposes, you might have noticed that this example isn’t very useful. If we want to identify the species of a penguin, there are easier ways than measuring its flippers and beak.

🔗

But there are scientific uses for this type of classification. One of them is the subject of the research paper we started with: sexual dimorphism, that is, differences in shape between male and female animals.

🔗

In some species, like angler fish, males and females look very different. In other species, like mockingbirds, they are difficult to tell apart. And dimorphism is worth studying because it provides insight into social behavior, sexual selection, and evolution.

🔗

One way to quantify the degree of sexual dimorphism in a species is to use a classification algorithm like the one in this chapter. If you can find a set of features that makes it possible to classify individuals by sex with high accuracy, that’s evidence of high dimorphism.

🔗

As an exercise, you can use the dataset from this chapter to classify penguins by sex and see which of the three species is the most dimorphic.

🔗

Exercises 12.10 Exercises

1. Exercise 1.

In my example I used culmen length and flipper length because they seemed to provide the most power to distinguish the three species. But maybe we can do better by using more features.

🔗

Make a naive Bayesian classifier that uses all four measurements in the dataset: culmen length and depth, flipper length, and body mass.

🔗

Is it more accurate than the model with two features?

🔗

Solution.

# Here are the norm maps for the other two features

depth_map = make_norm_map(df, 'Culmen Depth (mm)')
mass_map = make_norm_map(df, 'Body Mass (g)')

# And here are sequences for the features and the norm maps

colnames4 = ['Culmen Length (mm)', 'Flipper Length (mm)',
             'Culmen Depth (mm)', 'Body Mass (g)']
norm_maps4 = [culmen_map, flipper_map,
              depth_map, mass_map]

# Now let's classify and compute accuracy.

# We can do a little better with all four features,
# almost 97% accuracy

df['Classification'] = "None"

for i, row in df.iterrows():
    data_seq = row[colnames4]
    posterior = update_naive(prior, data_seq, norm_maps4)
    df.loc[i, 'Classification'] = posterior.max_prob()

accuracy(df)

0.9678362573099415

🔗

2. Exercise 2.

One of the reasons the penguin dataset was collected was to quantify sexual dimorphism in different penguin species, that is, physical differences between male and female penguins. One way to quantify dimorphism is to use measurements to classify penguins by sex. If a species is more dimorphic, we expect to be able to classify them more accurately.

🔗

As an exercise, pick a species and use a Bayesian classifier (naive or not) to classify the penguins by sex. Which features are most useful? What accuracy can you achieve?

🔗

Note: One Gentoo penguin has an invalid value for Sex. I used the following code to select one species and filter out invalid data.

🔗

gentoo = (df['Species2'] == 'Gentoo')
subset = df[gentoo].copy()

subset['Sex'].value_counts()

Sex
MALE      61
FEMALE    58
Name: count, dtype: int64

valid = df['Sex'] != '.'
valid.sum()

subset = df[valid & gentoo].copy()

OK, you can finish it off from here.

🔗

Solution.

# Here are the feature distributions grouped by sex

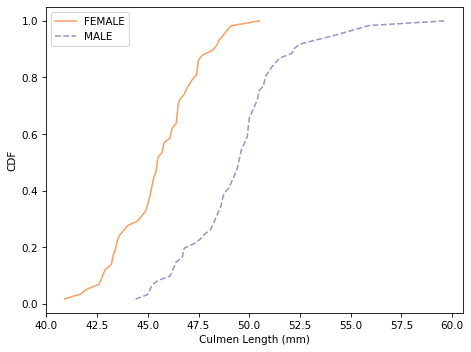

plot_cdfs(subset, 'Culmen Length (mm)', by='Sex')

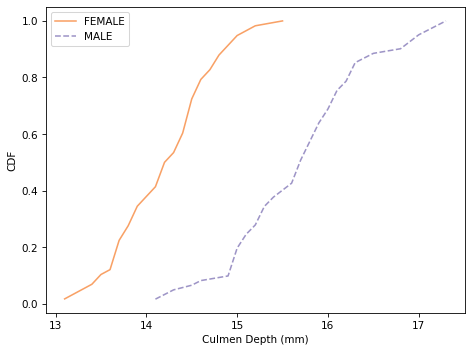

plot_cdfs(subset, 'Culmen Depth (mm)', by='Sex')

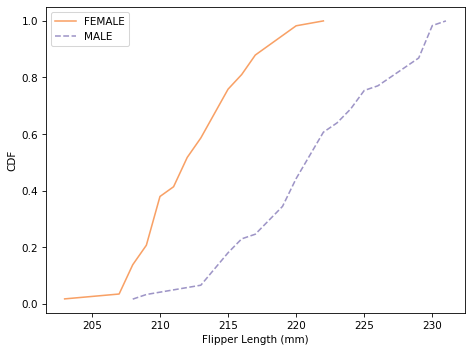

plot_cdfs(subset, 'Flipper Length (mm)', by='Sex')

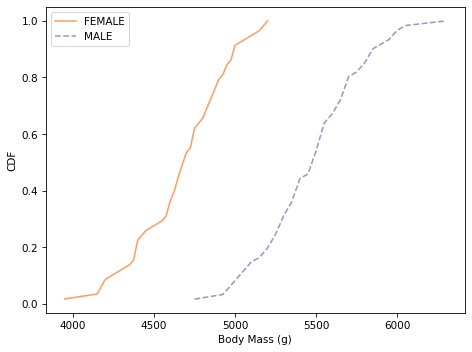

plot_cdfs(subset, 'Body Mass (g)', by='Sex')

# Here are the norm maps for the features, grouped by sex

culmen_map = make_norm_map(subset, 'Culmen Length (mm)', by='Sex')
flipper_map = make_norm_map(subset, 'Flipper Length (mm)', by='Sex')
depth_map = make_norm_map(subset, 'Culmen Depth (mm)', by='Sex')
mass_map = make_norm_map(subset, 'Body Mass (g)', by='Sex')

# And here are the sequences we need for `update_naive`

norm_maps4 = [culmen_map, flipper_map, depth_map, mass_map]
colnames4 = ['Culmen Length (mm)', 'Flipper Length (mm)',
             'Culmen Depth (mm)', 'Body Mass (g)']

# Here's the prior

hypos = culmen_map.keys()
prior = Pmf(1/2, hypos)
prior

FEMALE    0.5
MALE      0.5
dtype: float64

# And the update

subset['Classification'] = "None"

for i, row in subset.iterrows():
    data_seq = row[colnames4]
    posterior = update_naive(prior, data_seq, norm_maps4)
    subset.loc[i, 'Classification'] = posterior.max_prob()

# This function computes accuracy

def accuracy_sex(df):
    """Compute the accuracy of classification.

    Compares columns Classification and Sex

    df: DataFrame
    """
    valid = df['Classification'].notna()
    same = df['Sex'] == df['Classification']
    return same.sum() / valid.sum()

# Using these features we can classify Gentoo penguins by
# sex with almost 92% accuracy

accuracy_sex(subset)

0.9186991869918699

# Here's the whole process in a function so we can
# classify the other species

def classify_by_sex(subset):
    """Run the whole classification process.

    subset: DataFrame
    """
    culmen_map = make_norm_map(subset, 'Culmen Length (mm)', by='Sex')
    flipper_map = make_norm_map(subset, 'Flipper Length (mm)', by='Sex')
    depth_map = make_norm_map(subset, 'Culmen Depth (mm)', by='Sex')
    mass_map = make_norm_map(subset, 'Body Mass (g)', by='Sex')

    norm_maps4 = [culmen_map, flipper_map, depth_map, mass_map]

    hypos = culmen_map.keys()
    prior = Pmf(1/2, hypos)

    subset['Classification'] = "None"

    for i, row in subset.iterrows():
        data_seq = row[colnames4]
        posterior = update_naive(prior, data_seq, norm_maps4)
        subset.loc[i, 'Classification'] = posterior.max_prob()

    return accuracy_sex(subset)

# Here's the subset of Adelie penguins

# The accuracy is about 88%

adelie = df['Species2']=='Adelie'
subset = df[adelie].copy()
classify_by_sex(subset)

0.8807947019867549

# And for Chinstrap, accuracy is about 92%

chinstrap = df['Species2']=='Chinstrap'
subset = df[chinstrap].copy()
classify_by_sex(subset)

0.9264705882352942

# It looks like Gentoo and Chinstrap penguins are about equally
# dimorphic, Adelie penguins a little less so.

# All of these results are consistent with what's in the paper.

🔗

Prev Top Next
