Section 19.4 Training and Evaluating the SVM
We are now in good shape to train our support vector model. The following command generates a model based on the training data set:
svmOutput <- ksvm(type ~ ., data=trainData,
kernel="rbfdot", kpar="automatic",
C=5, cross=3, prob.model=TRUE)
svmOutput
Using automatic sigma estimation (sigest) for RBF or laplace kernel
Let’s examine this command in some detail. The first argument, "type ~ .", specifies the model we want to test. Using the word "type" in this expression means that we want to have the "type" variable (i.e., whether the message is spam or non-spam) as the outcome variable that our model predicts. The tilde character ("~") in an R expression simply separates the left hand side of the expression from the right hand side. Finally, the dot character (".") is a shorthand that tell R to us all of the other variables in the dataframe to try to predict "type."
The "data" parameter let’s us specify which dataframe to use in the analysis, In this case, we have specified that the procedure should use the trainData training set that we developed.
The next parameter is an interesting one: kernel="rbfdot". You will remember from the earlier discussion that the kernel is the customizable part of the SVM algorithm that lets us project the low dimensional problem into higher dimensional space. In this case, the rbfdot designation refers to the "radial basis function." One simple way of thinking about the radial basis function is that if you think of a point on a regular x,y coordinate system the distance from the origin to the point is like a radius of a circle. The "dot" in the name refers to the mathematical idea of a "dot product," which is a way of multiplying vectors together to come up with a single number such as a distance value. In simplified terms, the radial basis function kernel takes the set of inputs from each row in a dataset and calculates a distance value based on the combination of the many variables in the row. The weighting of the different variables in the row is adjusted by the algorithm in order to get the maximum separation of distance between the spam cases and the non-spam cases.
The "kpar" argument refers to a variety of parameters that can be used to control the operation of the radial basis function kernel. In this case we are depending on the good will of the designers of this algorithm by specifying "automatic." The designers came up with some "heuristics" (guesses) to establish the appropriate parameters without user intervention.
The C argument refers to the so called "cost of constraints." Remember back to our example of the the white top on the green mountain? When we put the piece of cardboard (the planar separation function) through the mountain, what if we happen to get one green point on the white side or one white point on the green side? This is a kind of mistake that influences how the algorithm places the piece of cardboard. We can force these mistakes to be more or less "costly," and thus to have more influence on the position of our piece of cardboard and the margin of separation that it defines. We can get a large margin of separation - but possibly with a few mistakes - by specifying a small value of C. If we specify a large value of C we may possibly get fewer mistakes, but on at the cost of having the cardboard cut a very close margin between the green and white points - the cardboard might get stuck into the mountain at a very weird angle just to make sure that all of the green points and white points are separated. On the other hand if we have a low value of C we will get a generalizable model, but one that makes more classification mistakes.
In the next argument, we have specified "cross=3." Cross refers to the cross validation model that the algorithm uses. In this case, our choice of the final parameter, "prob.model=TRUE," dictates that we use a so called three-fold cross validation in order to generate the probabilities associate with whether a message is or isn’t a spam message. Cross validation is important for avoiding the problem of overfitting. In theory, many of the algorithms used in data mining can be pushed to the point where they essentially memorize the input data and can perfectly replicate the outcome data in the training set. The only problem with this is that the model base don the memorization of the training data will almost never generalize to other data sets. In effect, if we push the algorithm too hard, it will become too specialized to the training data and we won’t be able to use it anywhere else. By using k-fold (in this case three fold) crossvalidation, we can rein in the fitting function so that it does not work so hard and so that it does creat a model that is more likely to generalize to other data.
Let’s have a look at what our output structure contains:
svmOutput
Support Vector Machine object of class "ksvm" SV type: C-svc (classification) parameter : cost C = 5 Gaussian Radial Basis kernel function. Hyperparameter : sigma = 0.0287825580201687 Number of Support Vectors : 953 Objective Function Value : -1750.51 Training error : 0.027388 Cross validation error : 0.076296 Probability model included.
Most of this is technical detail that will not necessarily affect how we use the SVM output, but a few things are worth pointing out. First, the sigma parameter mentioned was estimated for us by the algorithm because we used the "automatic" option. Thank goodness for that as it would have taken a lot of experimentation to choose a reasonable value without the help of the algorithm. Next, note the large number of support vectors. These are the lists of weights that help to project the variables in each row into a higher dimensional space. The "training error" at about 2.7% is quite low. Naturally, the cross-validation error is higher, as a set of parameters never perform as well on subsequent data sets as they do with the original training set. Even so, a 7.6% cross validation error rate is pretty good for a variety of prediction purposes.
We can take a closer look at these support vectors with the following command:

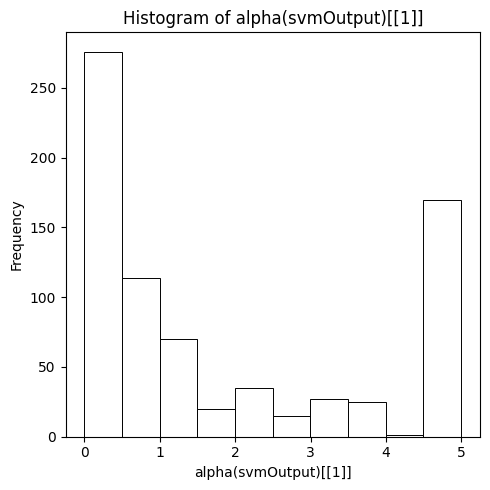

hist(alpha(svmOutput)[[1]])
![A histogram titled "Histogram of alpha(svmOutput)[[1]]" showing the distribution of support vector values ranging from 0 to 5. There is a large bar near zero and a large spike at the maximum value of 5, with smaller bars in between.](external/ch18-hist-alpha-svm-c5.png)
The
alpha() accessor reveals the values of the support vectors. Note that these are stored in a nested list, hence the need for the [[1]] expression to access the first list in the list of lists. Because the particular dataset we are using only has two classes (spam or not spam), we only need one set of support vectors. If the "type" criterion variable had more than two levels (e.g., spam, not sure, and not spam), we would need additional support vectors to be able to classify the cases into more than two groups. The histogram output reveals the range of the support vectors from 0 to 5:
The maximum value of the support vector is equal to the cost parameter that we discussed earlier. We can see that about half of the support vectors are at this maximum value while the rest cluster around zero. Those support vectors at the maximum represent the most difficult cases to classify. WIth respect to our mountain metaphor, these are the white points that are below the piece of cardboard and the green points that are above it.
If we increase the cost parameter we can get fewer of these problem points, but at only at the cost of increasing our cross validation error:
svmOutput <- ksvm(type ~ ., data=trainData,
kernel="rbfdot",kpar="automatic",C=50,cross=3,pro
b.model=TRUE)
svmOutput
Support Vector Machine object of class "ksvm" SV type: C-svc (classification) parameter : cost C = 50 Gaussian Radial Basis kernel function. Hyperparameter : sigma = 0.0299992970259353 Number of Support Vectors : 850 Objective Function Value : -6894.635 Training error : 0.008803 Cross validation error : 0.085424 Probability model included.

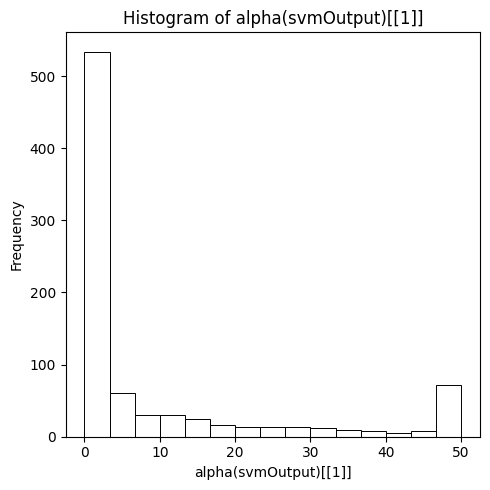

In the first command above, the C=50 is bolded to show what we changed from the earlier command. The output here shows that our training error went way down, to 0.88%, but that our crossvalidation error went up from 7.6% in our earlier model to 8.5% in this model. We can again get a histogram of the support vectors to show what has happened:
![A histogram titled "Histogram of alpha(svmOutput)[[1]]" showing the distribution of support vector values ranging from 0 to 50. There is a very large bar near zero (frequency around 500) and a smaller spike at the maximum value of 50, with low frequency bars in between.](external/ch18-hist-alpha-svm-c50.png)
Now there are only about 100 cases where the support vector is at the maxed out value (in this case 50, because we set C=50 in the svm command). Again, these are the hard cases that the model could not get to be on the right side of the cardboard (or that were right on the cardboard). Meanwhile, the many cases with the support vector value near zero represent the combinations of parameters that make a case lie very far from the piece of cardboard. These cases were so easy to classify that they really made no contribution to "positioning" the hyperplane that separates the spam cases from the non-spam cases.
We can poke out way into this a little more deeply by looking at a couple of instructive cases. First, let’s find the index numbers of a few of the support vectors that were near zero:
alphaindex(svmOutput)[[1]][alpha(svmOutput)[[1]] < 0.05]
[1] 90 98 289 497 634 745 1055 1479 1530 1544 1646 1830 1948 2520 2754
This monster of a command is not as bad as it looks. We are tapping into a new part of the svmOutput object, this time using the
alphaindex() accessor function. Remember that we have 850 support vectors in this output. Now imagine two lists of 850 right next to each other: the first is the list of support vectors themselves, we get at that list with the alpha() accessor function. The second list, lined right up next to the first list, is a set of indices into the original training dataset, trainData. The left hand part of the expression in the command above let’s us access these indices. The right hand part of the expression, where it says alpha(svmOutput)[[1]] < 0.05, is a conditional expression that let’s us pick from the index list just those cases with a very small support vector value. You can see the output above, just underneat the command: about 15 indices were returned. Just pick off the first one, 90, and take a look at the individual case it refers to:
trainData[90,]
make address all num3d our over remove
0 0 0 0 0 0 0
internet order mail receive will
0 0 0 0 0
.
.
.
charExclamation charDollar charHash capitalAve
1.123 0 0 2.6
capitalLong capitalTotal
16 26
type
nonspam
The command requested row 90 from the trainData training set. A few of the lines of the output were left off for ease of reading and almost all of the variables thus left out were zero. Note the very last two lines of the output, where this record is identified as a non-spam email. So this was a very easy case to classify because it has virtually none of the markers that a spam email usually has (for example, as shown above, no mention of internet, order, or mail). You can contrast this case with one of the hard cases by running this command:
alphaindex(svmOutput)[[1]][alpha(svmOutput)[[1]]==50]
You will get a list of the 92 indices of cases where the support vector was "maxed out" to the level of the cost function (remember C=50 from the latest run of the
svm() command). Pick any of those cases and display it, like this:
trainData[11,]
This particular record did not have many suspicious keywords, but it did have long strings of capital letters that made it hard to classify (it was a non-spam case, by the way). You can check out a few of them to see if you can spot why each case may have been difficult for the classifier to place.
The real acid test for our support vector model, however, will be to use the support vectors we generated through this training process to predict the outcomes in a novel data set. Fortunately, because we prepared carefully, we have the testData training set ready to go. The following commands with give us some output known as a "confusion matrix:"
svmPred <- predict(svmOutput, testData,
type="votes")
compTable <- data.frame(testData[,58],svmPred[1,])
table(compTable)
svmPred.1... testData...58. 0 1 nonspam 38 854 spam 574 68
The first command in the block above uses our model output from before, namely svmOutput, as the parameters for prediction. It uses the "testData," which the support vectors have never seen before, to generate predictions, and it requests "votes" from the prediction process. We could also look at probabilities and other types of model output, but for a simple analysis of whether the svm is generating good predictions, votes will make our lives easier.
The output from the
predict() command is a two dimensional list. You should use the str command to examine its structure. basically there are two lists of "vote" values side by side. Both lists are 1534 elements long, corresponding to the 1534 cases in our testData object. The lefthand list has one for a non-spam vote and zero for a spam vote. Because this is a two-class problem, the other list has just the opposite. We can use either one because they are mirror images of each other.
In the second command above, we make a little dataframe, called compTable, with two variables in it: The first variable is the 58th column in the test data, which is the last column containing the "type" variable (a factor indicating spam or non-spam). Remember that this type variable is the human judgments from the original dataset , so it is our ground truth. The second variable is the first column in our votes data structure (svmPred), so it contains ones for non-spam predictions and zeros for spam predictions.
Finally, applying the
table() command to our new dataframe (compTable) gives us the confusion matrix as output. Along the main diagonal we see the erroneous classifications - 38 cases that were not spam, but were classified as spam by the support vector matrix and 68 cases that were spam, but were classified as non- spam by the support vector matrix. On the counter-diagonal, we see 854 cases that were correctly classified as non-spam and 574 cases that were correctly classified as spam.
Overall, it looks like we did a pretty good job. There are a bunch of different ways of calculating the accuracy of the prediction, depending upon what you are most interested in. The simplest way is to sum the 68 + 38 = 106 error cases and divided by the 1534 total cases for an total error rate of about 6.9%. Interestingly, that is a tad better than the 8.5% error rate we got from the k-fold crossvalidation in the run of
svm() that created the model we are testing. Keep in mind, though, that we may be more interested in certain kinds of error than other kinds. For example, consider which is worse, an email that gets mistakenly quarantined because it is not really spam, or a spam email that gets through to someone’s inbox? It really depend on the situation, but you can see that you might want to give more consideration to either the 68 misclassification errors or the other set of 38 misclassification errors
